Starter examples

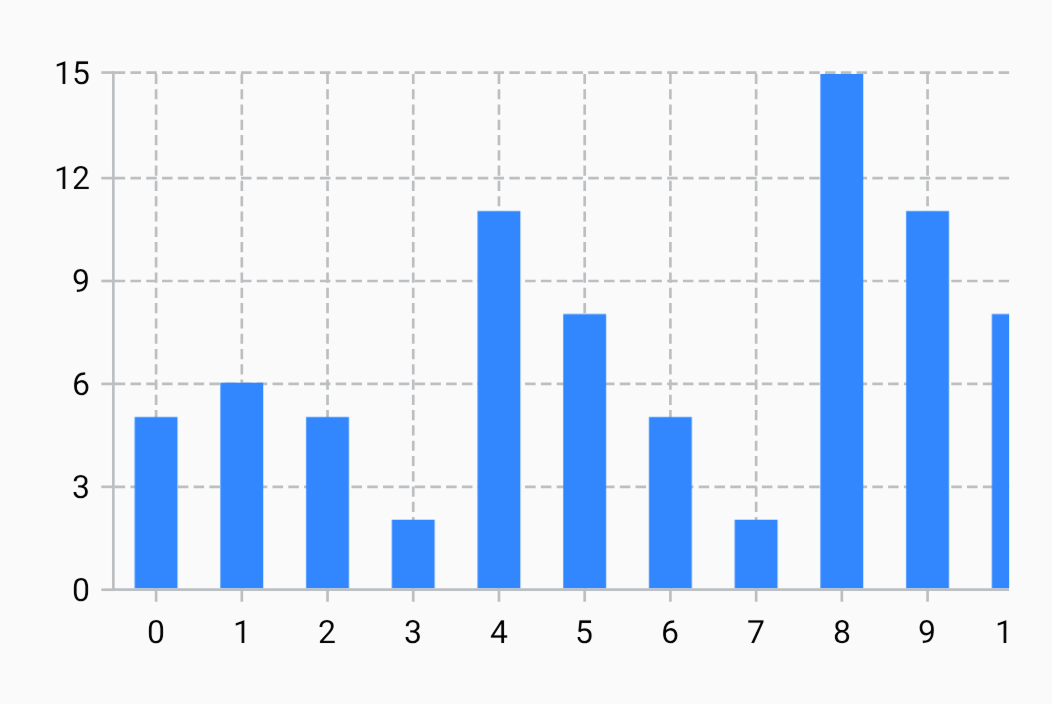

Column chart

The following has been adapted from the “Basic column chart” sample chart.

val modelProducer = remember { CartesianChartModelProducer() }
LaunchedEffect(Unit) {
    modelProducer.runTransaction {
        columnModel { series(5, 6, 5, 2, 11, 8, 5, 2, 15, 11, 8, 13, 12, 10, 2, 7) }
    }
}
CartesianChartHost(
    rememberCartesianChart(
        rememberColumnCartesianLayer(),
        startAxis = VerticalAxis.rememberStart(),
        bottomAxis = HorizontalAxis.rememberBottom(),
    ),
    modelProducer,
)

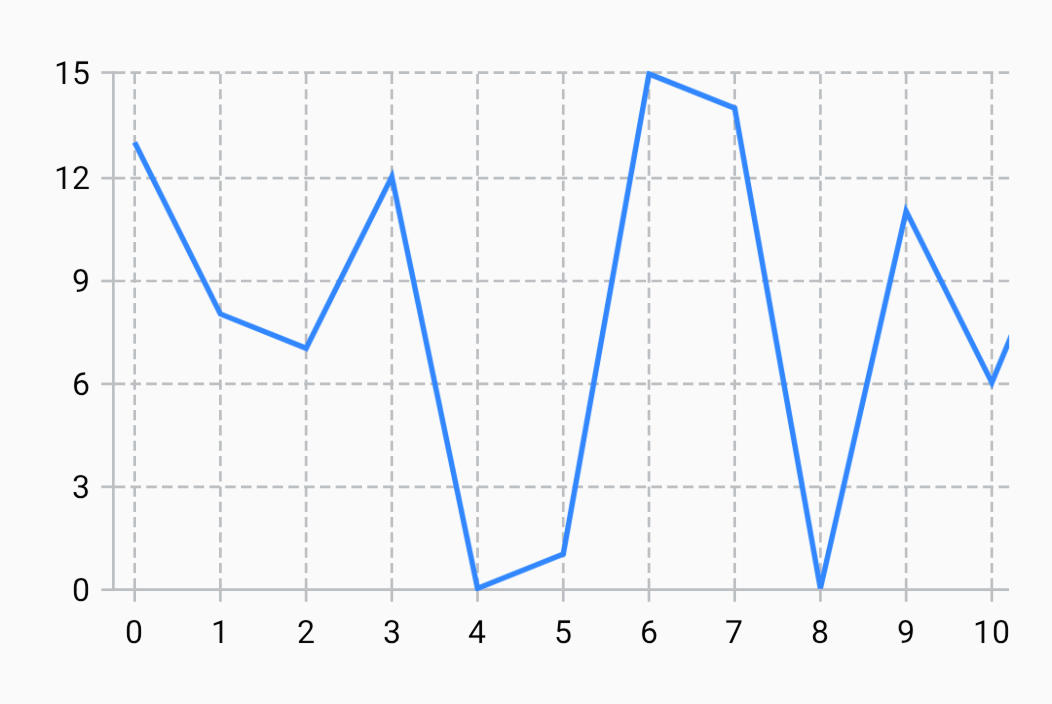

Line chart

The following has been adapted from the “Basic line chart” sample chart.

val modelProducer = remember { CartesianChartModelProducer() }
LaunchedEffect(Unit) {
    modelProducer.runTransaction {
        lineModel { series(13, 8, 7, 12, 0, 1, 15, 14, 0, 11, 6, 12, 0, 11, 12, 11) }
    }
}
CartesianChartHost(
    rememberCartesianChart(
        rememberLineCartesianLayer(),
        startAxis = VerticalAxis.rememberStart(),
        bottomAxis = HorizontalAxis.rememberBottom(),
    ),
    modelProducer,
)

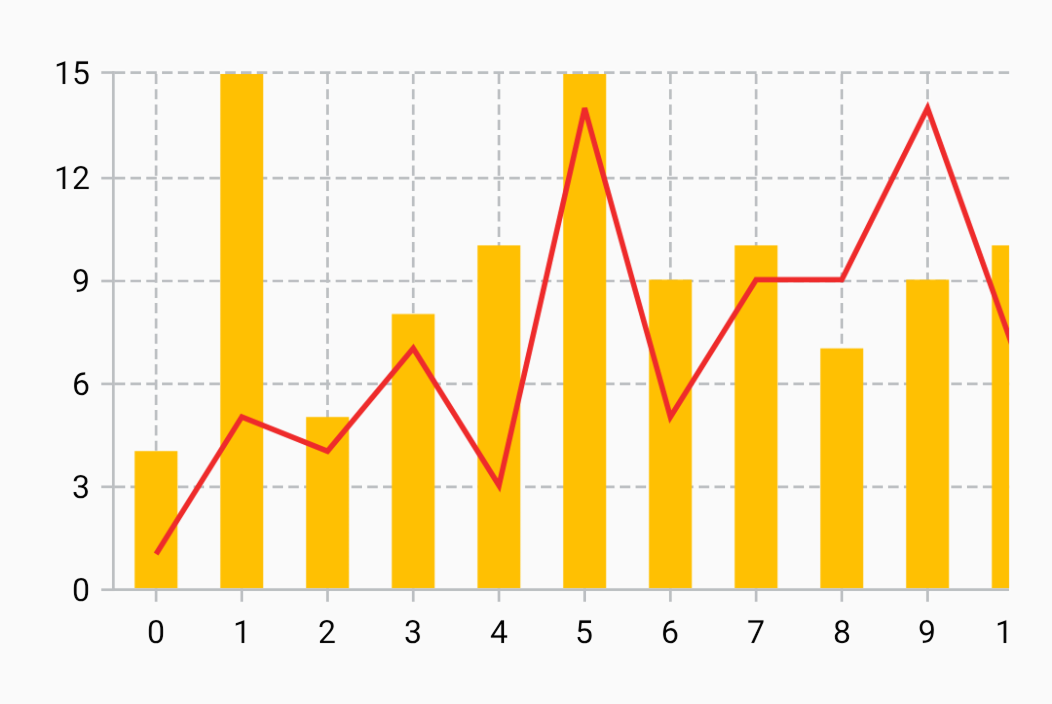

Combo chart

The following has been adapted from the “Basic combo chart” sample chart.

val modelProducer = remember { CartesianChartModelProducer() }
LaunchedEffect(Unit) {
    modelProducer.runTransaction {
        columnModel { series(4, 15, 5, 8, 10, 15, 9, 10, 7, 9, 10, 12, 2, 9, 5, 14) }
        lineModel { series(1, 5, 4, 7, 3, 14, 5, 9, 9, 14, 7, 13, 14, 4, 10, 12) }
    }
}
CartesianChartHost(
    rememberCartesianChart(
        rememberColumnCartesianLayer(
            ColumnCartesianLayer.ColumnProvider.series(
                rememberLineComponent(Fill(Color(0xffffc002)), 16.dp)
            )
        ),
        rememberLineCartesianLayer(
            LineCartesianLayer.LineProvider.series(
                LineCartesianLayer.Line(
                    LineCartesianLayer.LineFill.single(Fill(Color(0xffee2b2b)))
                )
            )
        ),
        startAxis = VerticalAxis.rememberStart(),
        bottomAxis = HorizontalAxis.rememberBottom(),
    ),
    modelProducer,
)

More

For more examples, refer to the sample app.
